                           Infixion

                          Infixion

                Disaster Relief Shelter                           Phase 1

               Disaster Relief Shelter
                          Phase 1

                 Disaster Relief Shelter                             Phase 2

               Disaster Relief Shelter
                          Phase 2

             The Grove & Tree House

            The Grove & Tree House


                 Affinity Night Club

                Affinity Night Club

              Cultural Literary Center

             Cultural Literary Center

       Construction Documents Studio

      Construction Documents Studio


Car Gradient.jpg

INFIXION


A Digital Manufacturing Unit (and district) in the city of Chicago.

INFIXION


A Digital Manufacturing Unit (and district) in the city of Chicago.

Working with New World Design of Chicago, Illinois, this project was a proposal for a potential DMD and DMU within the city.

[v. - in-fiks-shuhn]
To instill (a fact, idea, etc.) in the mind or memory; Impress


Chicago, Illinois has been looking to plant the seed of incorporating digital manufacturing into the everyday life in an urban environment in a Digital Manufacturing District (DMD). The region referenced in this proposal will be located on Goose Island in Chicago. Within the DMD there will be several smaller scale sites which will house a Digital Manufacturing Unit (DMU). Each unit will be comprised of a mixed-use program which may include any or all of the following sectors: Housing, Retail and Hospitality, Offices, Transportation, and Manufacturing. The first DMU being proposed will plant the seed from which the rest of the island will eventually grow. The manufacturing sector is proposed to be centered around producing aerospace parts for Formula 1 racing cars, so the designs are reflective of such.  Infixion will be a model for others to observe and interpret, and ultimately has the potential to expand beyond its existing boundaries and pop up in other cities around the world.

The Nitty Gritties

core design principles

  • Reflection of the surrounding context is important but should not restrict the design.
  • The design should be influenced by the products the manufacturing sector is exporting, as well as by the atmosphere of constant motion within the iFAB space.
  • Although separating the uses is easiest in terms of structure and functionality, it is important to remember that iFAB is all about collaboration of parts, people, and machines. This should be reflected in successful collaboration of uses.
  • Creating and encouraging a [primarily] pedestrian based district (although allowing for the use of vehicles) pushes for an environment that is friendly to live in, work in, and explore. A major challenge is attempting to successfully and functionally separate pedestrians and bicyclists from traffic to avoid injuries and congestion.
  • An urban environment calls for urban solutions, not suburban ones, but avoiding monotonous urban walls whenever possible is ideal for the most positive experience.



DMD Location: Goose Island, Chicago, Illinois




- Click on the images below to enlarge view. -




digital manufacturing unit

- Click on the images below to enlarge view. -

                                                          Manufacturing Elevator System Diagram

Mashrabiya Pettern.JPG

Disaster Relief Shelter - Phase 1


Collaborative senior capstone project.



Our goal, through cultural inscription and
programmatic versatility, is to build not simply
a system of shelters, but a community.

Disaster Relief Shelter - Phase 1


Collaborative senior capstone project.



Our goal, through cultural inscription and
programmatic versatility, is to build not simply
a system of shelters, but a community.

Za'atari refugee camp, jordan

                                                                            *Photo does not belong to me.  Original Photo is credited to and can be found  Here .*

                                                                           *Photo does not belong to me.  Original Photo is credited to and can be found Here.*

Syrian Civil War conflict has been testing the resilience of native families for the past three years. Close quarters and desperation are spurring domestic violence, depression, illness, and a decline in education in Za’atari, the world’s second largest refugee camp that houses almost 200,000 displaced Syrians. Values that were once priorities, such as education, have fallen in importance as survival has become the new focus. The United Nations High Commission for Refugees (UNHCR) provides caravans for refugee families that serve as living quarters, shops, health clinics, and classrooms throughout the camp. While these structures serve to shelter, they are simple box forms that offer little opportunity for customization, programming, and transformation.

  *Photo does not belong to me.  Original Photo is credited to and can be found   Here  .*

*Photo does not belong to me.  Original Photo is credited to and can be found Here.*

  *Photo does not belong to me.  Original Photo is credited to and can be found   Here  .*

*Photo does not belong to me.  Original Photo is credited to and can be found Here.*

  *Photo does not belong to me.  Original Photo is credited to and can be found   Here  .*

*Photo does not belong to me.  Original Photo is credited to and can be found Here.*

  *Photo does not belong to me.  Original Photo is credited to and can be found   Here  .*

*Photo does not belong to me.  Original Photo is credited to and can be found Here.*

We, as a group, have designed a structure that is quickly deployable, affordable, and highly customizable. We want the Za’atari refugee camp to utilize our shelters not only as homes, but as community drivers. We have developed supplementary kits that can transform the shelters into classrooms to increase educational enrollment, health clinics to provide more effective treatment spaces, and work spaces to maximize productivity among the entrepreneurial community. The prominence of the Mashrabiya panels, or intricate screens, relates back to the culture of the Syrian people. The panels are typically used on the upper half of the house, creating pressurized air circulation and draw fresh air through the home, resulting in passive cooling in a hot and arid climate.

- Click on the images below to enlarge view -

This structure is designed to far exceed the intended stay of a Za'atari refugee.  However, in the event that residents may be able to return home, the structures can be broken down and redistributed to other displaced victims of the Syrian conflict afflicting the Middle East.  If possible, a family may disassemble the structures and take them back to their homes to be reconstructed while a more permanent residence is established given the destruction of war.

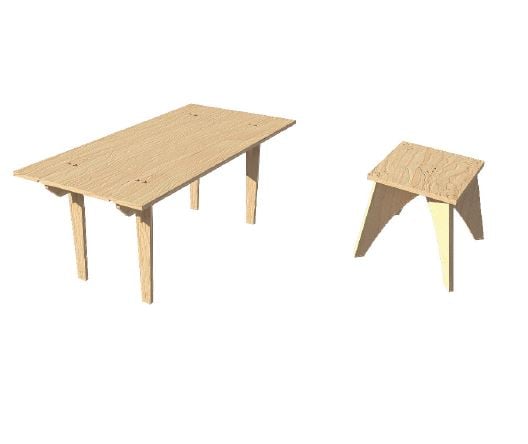

                                           Possible Connection patterns for various furniture pieces
